HIGH-VOLUME ASM SIPLACE PLACEMENT PLATFORM

ASM SIPLACE X-Series S (XS) SMT Placement Machines

The ASM SIPLACE X-Series S is a high-capacity SMT placement platform available as the two-gantry X2 S, three-gantry X3 S and four-gantry X4 S. Current benchmark ratings range from 75,000 to 150,000 components per hour, with up to 160 positions for 8 mm feeders and CP20, CPP or TWIN head options for high-volume electronics production.

Compare X2 S, X3 S and X4 S placement speeds, gantry configurations, head combinations, PCB handling capabilities and available used machines before selecting a system for your SMT production line.

X4S, X3S and X2S machine configurations
High-volume and high-precision placement
Two, three or four placement gantries
Large-PCB and dual-lane production options
View Available X S Models Request Configuration Review
SIPLACE X-Series S ASM SIPLACE X S XS Series SMT placement machine
Machine & Configuration Support
Available Equipment

Available SIPLACE X S Machine Models

Browse the X4S, X3S and X2S machines published under this series. The installed placement heads, conveyor configuration, software, machine condition and included accessories should be confirmed for each unit.

Send Your X S Requirement
High-Volume Performance

Three X S Configurations for Different Capacity Targets

SIPLACE X4S, X3S and X2S share the same high-volume platform concept while providing different gantry counts and placement capacities. The final production result also depends on the installed heads, component mix, PCB transport and line balance.

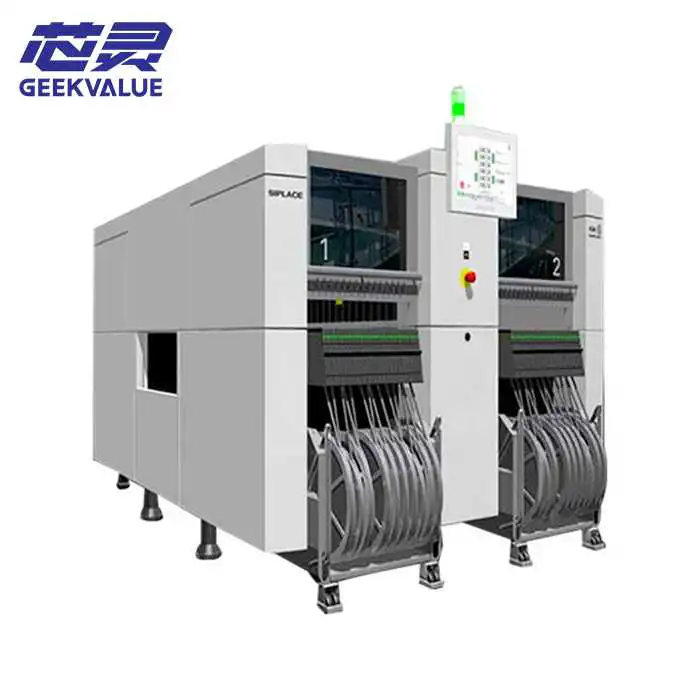

SIPLACE X4S 150,000 CPH

Four-gantry configuration for maximum platform capacity.

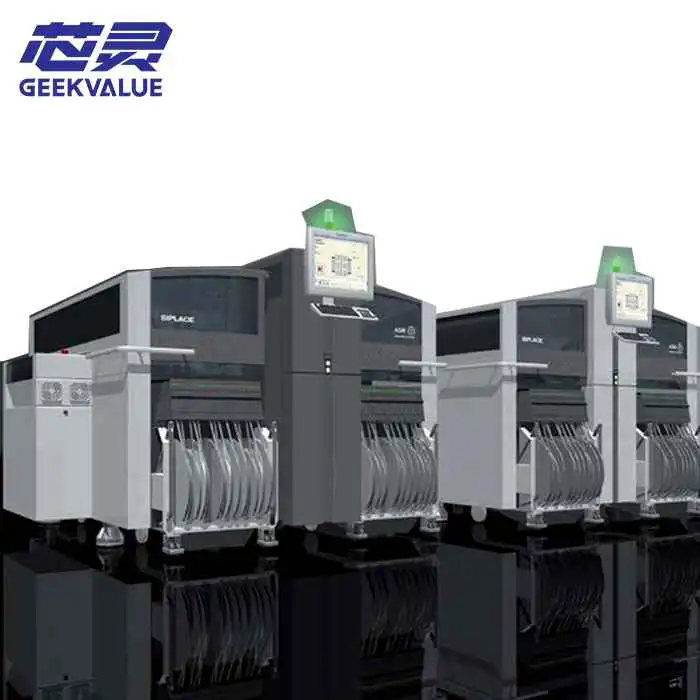

SIPLACE X3S 112,500 CPH

Three-gantry configuration for high-output production.

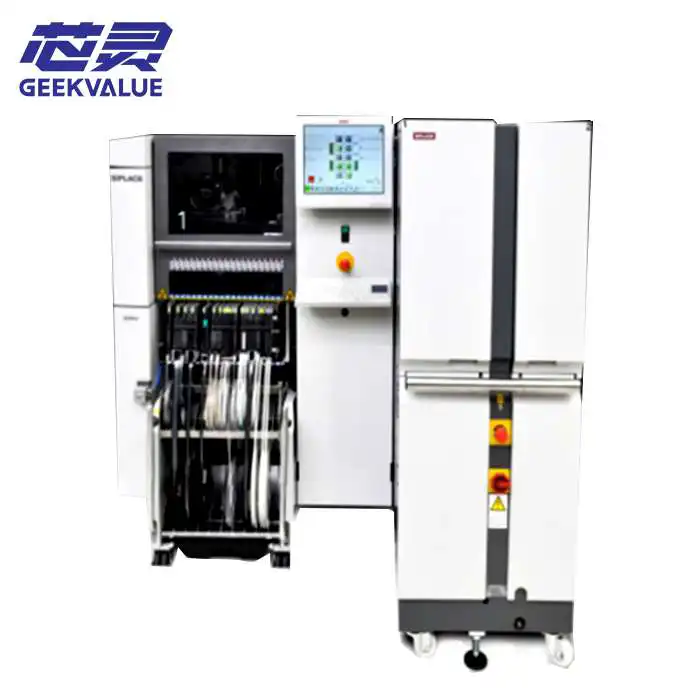

SIPLACE X2S 75,000 CPH

Two-gantry configuration for scalable volume production.

Material Capacity Up to 160

Feeder slots for broad and complex production setups.

Platform Overview

Understanding the SIPLACE X-Series S Platform

The X S platform is intended for demanding volume production where placement output, precision, process reliability, feeder capacity and large-board handling must be evaluated together.

Selecting an X4S, X3S or X2S Machine

The main difference between SIPLACE X4S, X3S and X2S is the number of placement gantries. X4S provides four gantries, X3S provides three, and X2S provides two. The required model should be selected according to actual line capacity and product requirements rather than model name alone.

Machines with the same X S model designation may have different placement-head combinations, conveyor arrangements, software versions and installed process options. The machine label and actual configuration should therefore be reviewed before a quotation is confirmed.

Information to Confirm Before Selection

  • Required X4S, X3S or X2S machine configuration
  • Installed placement-head type on each gantry
  • Single-lane, dual-lane or flexible dual-lane conveyor
  • PCB dimensions, thickness and weight
  • Smallest, largest and odd-shaped components
  • Required feeder quantity and tape widths
  • Software version and line communication requirements
  • Machine condition, manufacturing year and destination
Model Comparison

What Is the Difference Between SIPLACE X2 S, X3 S and X4 S?

The primary difference is gantry count and benchmark placement capacity. The X2 S uses two gantries and reaches 75,000 CPH, the X3 S uses three gantries and reaches 112,500 CPH, while the X4 S uses four gantries and reaches 150,000 CPH. Actual output depends on the installed heads and production program.

Machine Model Gantry Configuration Placement Speed Placement Accuracy Production Positioning Supply Status
SIPLACE X4S Four placement gantries Up to 150,000 cph Up to 25 µm Maximum-capacity high-volume SMT production Contact for availability
SIPLACE X3S Three placement gantries Up to 112,500 cph Up to 25 µm High-output production with balanced capacity Contact for availability
SIPLACE X2S Two placement gantries Up to 75,000 cph Up to 25 µm Scalable high-quality volume production Contact for availability
Production Capabilities

Where SIPLACE X S Machines Deliver the Most Value

The platform is positioned for demanding electronics manufacturing where high placement capacity, precise process control and continuous material supply are important.

01

Telecommunication and 5G

High-density boards and demanding component mixes for communication infrastructure and network equipment.

02

IT and Server Hardware

Complex computing, server and networking boards with large component counts and continuous output requirements.

03

High-Volume Electronics

Production environments where placement capacity, uptime, material supply and consistent yield are critical.

04

Large and Complex PCBs

Applications requiring conveyor review, large-board handling and precise warpage compensation processes.

Placement Heads and Parts

Head, Feeder and Spare-Parts Support for SIPLACE X S

The actual component range and output depend heavily on the installed head combination. Machine labels, head types and original part numbers should be checked before matching replacement components.

SIPLACE X FeedersFeeder units and feeder replacement parts CP20 Placement HeadsHigh-speed head modules and service parts CPP Placement HeadsFlexible placement-head components TWIN Placement HeadsLarge and odd-shaped component handling ASM SMT NozzlesStandard and special pickup nozzles More X S Spare PartsMotors, boards, sensors, cameras and cables
Supply Process

From X S Model Selection to Delivery

High-volume equipment should be verified by complete machine configuration rather than model designation alone.

01

Production Review

Confirm target output, PCB dimensions, component range, feeder requirements and existing line conditions.

02

Model Selection

Compare X4S, X3S and X2S capacity and identify the required gantry and placement-head configuration.

03

Machine Verification

Review labels, installed heads, conveyor arrangement, software information, photos and available test details.

04

Packing and Delivery

Confirm included equipment, feeder packages, export packing, shipment details and destination requirements.

Frequently Asked Questions

SIPLACE X S Machine Questions

Common information about X4S, X3S and X2S machines, placement heads, feeders, configurations and supply options.

SIPLACE X S and X-Series S are the official platform expressions. In customer searches and supplier records, the platform is also commonly written as SIPLACE XS.

The primary difference is the number of placement gantries and the resulting nominal placement capacity. X4S uses four gantries, X3S uses three and X2S uses two.

Used and refurbished equipment may be available according to current inventory. Machine condition, installed heads, conveyor configuration and included accessories must be confirmed individually.

Available machine labels, photos, installed-head information, software details and inspection information can be reviewed according to the individual unit.

Feeder packages depend on the quotation. Machines may be supplied separately or matched with compatible SIPLACE X feeders according to tape width and production setup.

Feeders, placement heads, nozzles, motors, boards, sensors, cameras, cables and other replacement parts can be matched using the machine model and original part number.

Please provide the required model, target output, PCB dimensions, component range, head configuration, feeder requirement, preferred equipment condition and destination country.

Need Help Selecting an X4S, X3S or X2S Machine?

Send your required production output, PCB size, component range, placement-head configuration, feeder requirement and destination country for machine matching.
