The original ASM/Siemens SIPLACE X Series is a legacy modular SMT placement platform comprising the X2, X3 and X4 models with two, three and four gantries. Depending on machine generation, these systems use C&P20, C&P12, C&P6 or TwinHead configurations with single or flexible dual conveyors for replacement and capacity expansion in established SIPLACE production lines.
Compare available used and refurbished SIPLACE X2, X3 and X4 machines, installed placement heads, conveyor configurations, feeder compatibility, software generations, machine condition and legacy spare-parts support.
Browse used and refurbished SIPLACE X4, X3 and X2 machines published under this series. The installed placement heads, conveyor configuration, software generation, machine condition and included accessories should be confirmed for each unit.
Used equipment

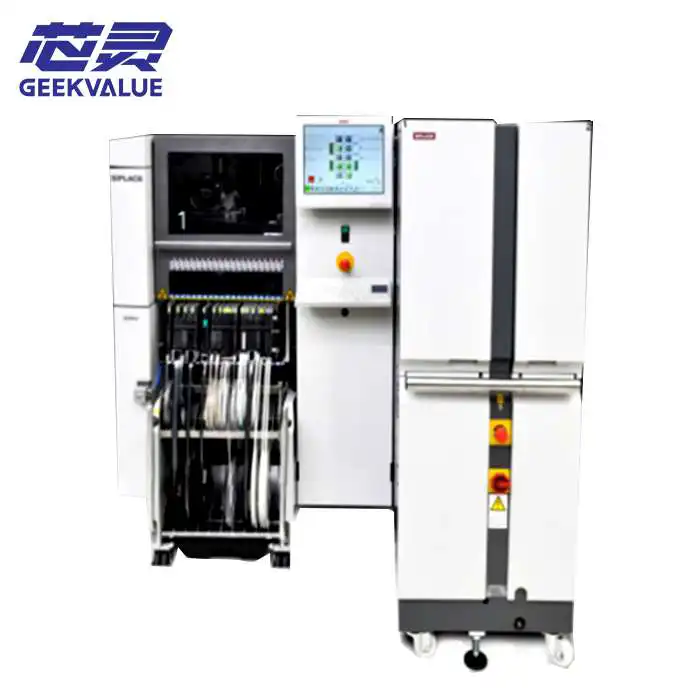

Used SIPLACE X2 two-gantry SMT mounter with modular C&P and TwinHead options, X feeders and flexible PCB transport.
Used equipment

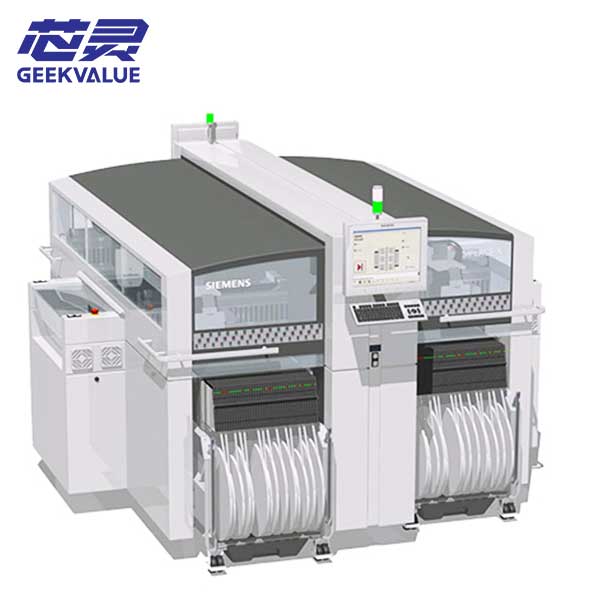

The SIPLACE X3 is the three-gantry model in the modular SIPLACE X-series placement platform. Each gantry carries one pla...
Used equipment

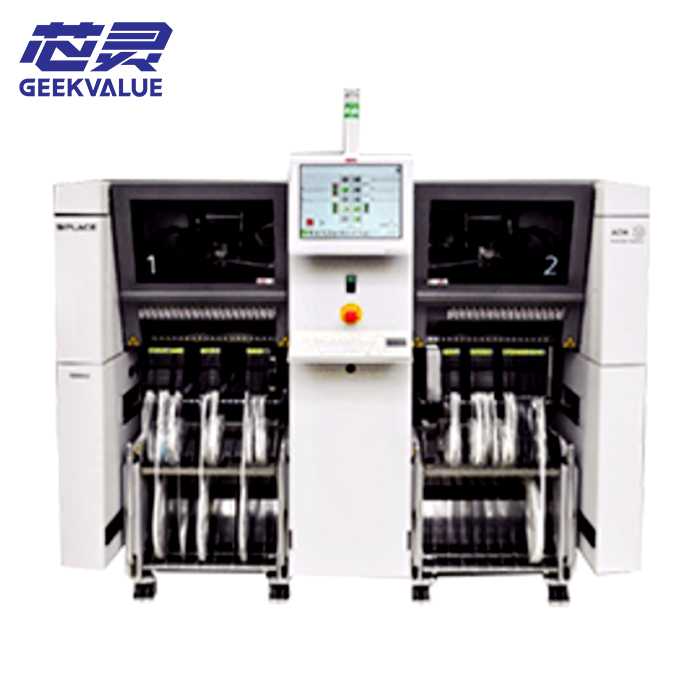

The Siemens SIPLACE X4 is a four-gantry SMT placement machine developed for production lines that need high placement ou...
SIPLACE X4, X3 and X2 share the same modular platform concept while providing different gantry counts. Actual production capability depends on the installed head combination, conveyor type, feeder setup, software version and condition of the individual machine.
Highest gantry count in the original X Series platform.
Balanced configuration for established volume-production lines.
Lower gantry count with flexible head and conveyor options.
20-, 12- and 6-nozzle Collect & Place heads plus TwinHead.
The original SIPLACE X Series is an established modular placement platform found in many long-running SMT production lines. This page focuses on the X4, X3 and X2 machine families, not the newer SIPLACE X-Series S models.
The main structural difference between SIPLACE X4, X3 and X2 is the number of placement gantries. X4 provides four gantries, X3 provides three, and X2 provides two. Machine selection should also consider the installed heads, conveyor arrangement, feeder tables, software version and current equipment condition.
Machines carrying the same X Series model designation can have different 20-nozzle, 12-nozzle, 6-nozzle or TwinHead combinations. They may also use different conveyor and component-supply configurations, so the machine label and installed hardware should be reviewed before quotation.
The main difference between SIPLACE X4, X3 and X2 is the number of placement gantries and head positions. X4 has four gantries, X3 has three and X2 has two. Actual placement speed, component range and production capability depend on the installed heads, conveyor, software generation, feeder interface and machine condition.
| Machine Model | Placement Gantries | Head Positions | Common Legacy Head Options | Conveyor Options | Typical Selection |
|---|---|---|---|---|---|
| SIPLACE X4 | Four gantries | Four placement-head positions | C&P20, C&P12, C&P6 or TwinHead, depending on machine configuration | Single conveyor or flexible dual conveyor | Highest gantry count in the original X Series for established lines requiring maximum platform capacity |
| SIPLACE X3 | Three gantries | Three placement-head positions | C&P20, C&P12, C&P6 or TwinHead, depending on machine configuration | Single conveyor or flexible dual conveyor | Balanced configuration for production lines requiring both placement output and component flexibility |
| SIPLACE X2 | Two gantries | Two placement-head positions | C&P20, C&P12, C&P6 or TwinHead, depending on machine configuration | Single conveyor or flexible dual conveyor | Two-gantry configuration for machine replacement, added capacity or applications that do not require an X3 or X4 |
For factories already operating the original X Series, compatible used machines and spare parts can support capacity expansion, equipment replacement and continued production without redesigning the entire line.
Add matching capacity to an installed X Series line while retaining familiar feeders, processes and operator workflows.
Replace a failed or aging machine with a compatible used unit instead of changing the complete production platform.
Continue using compatible feeder inventory, nozzle tooling and selected line-side accessories where configuration permits.
Legacy Support requiring conveyor review, large-board handling and precise warpage compensation processes.
The original X Series supports multiple Collect & Place head configurations and TwinHead options. Machine labels, head types, feeder interfaces and original part numbers should be checked before matching replacement components.
Used X Series equipment should be verified by complete machine configuration, installed hardware and current condition rather than model designation alone.
Confirm the existing line, required model, PCB range, feeder inventory, production target and replacement purpose.
Compare X4, X3 and X2 structures and identify the required gantry, head, conveyor and feeder configuration.
Review labels, installed heads, conveyor arrangement, software information, photos and available test details.
Confirm included equipment, feeder packages, export packing, shipment details and destination requirements.
Common information about original SIPLACE X4, X3 and X2 machines, placement heads, feeders, software compatibility and used-equipment supply.
No. This page covers the original SIPLACE X4, X3 and X2 platform. SIPLACE X-Series S uses the later X4S, X3S and X2S model names and should be handled on a separate series page.
The main original platform variants are SIPLACE X4, X3 and X2, corresponding to four, three and two placement gantries. Individual machines may have different placement heads and conveyor configurations.
Used and refurbished X4, X3 and X2 machines may be available according to inventory. The machine label, head combination, conveyor, software version, condition and included accessories should be confirmed individually.
Depending on machine generation and configuration, the original X Series may use 20-nozzle, 12-nozzle or 6-nozzle Collect & Place heads and SIPLACE TwinHead options.
The platform was designed to support 01005 processes, but actual capability depends on the installed 20-nozzle head, suitable feeders and nozzles, software level, calibration and production conditions.
Feeder packages depend on the quotation. A machine may be supplied separately or matched with compatible SIPLACE X feeders according to tape width, feeder quantity and existing line requirements.
Feeders, placement heads, nozzles, motors, boards, sensors, cameras, cables and other components can be matched using the complete machine model, original part number, installed position and photos.
Please provide the required X4, X3 or X2 model, machine-label photos, installed head types, conveyor configuration, feeder requirement, equipment condition, destination country and whether the request is for replacement or capacity expansion.
Send the current machine model, required replacement or expansion target, installed head configuration, feeder requirement, destination and available machine-label photos for matching.
